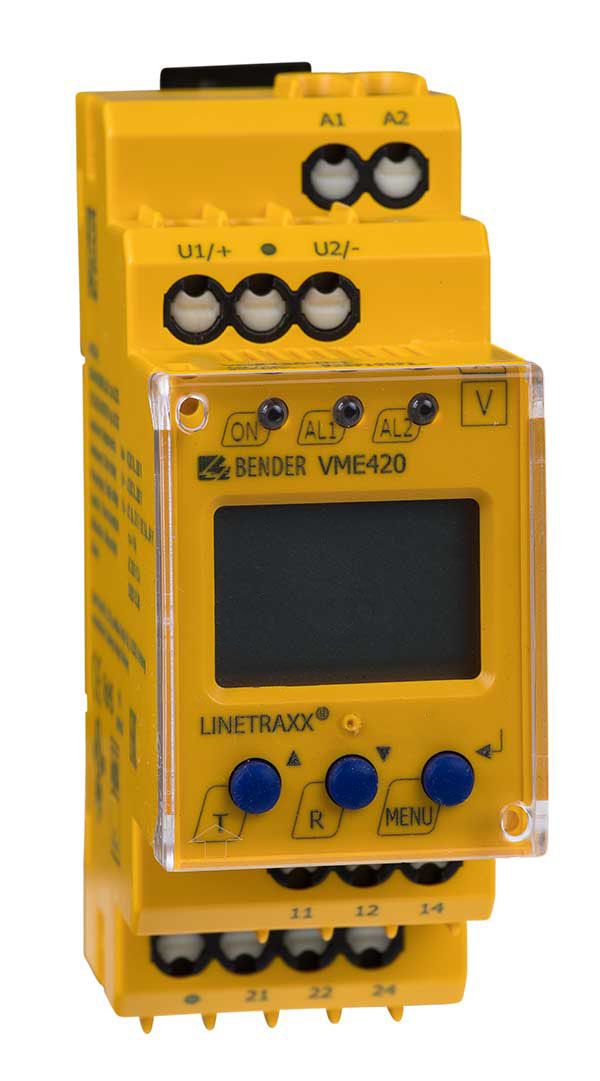

LINETRAXX® VME420

  • 0...300V的交直流欠电压、过电压和频率监视仪
  • 各种监视功能可选< U, > U, < f, > f
  • 可调启动延迟,响应延迟和释放延迟
  • 设备设置的密码保护
  • 预设功能(基本参数的自动设定)

VME420系列电压监视仪被设计用于监视频率、欠电压、过电压和交流和直流系统中两个阈值之间的电压。 电压测量是真实有效值。电流测量值连续显示在液晶屏上。存储触发报警继电器所需的测量值。由于可调的响应时间,可以考虑特定于设备的特性,如特定于设备的启动过程、短时电压波动等。监视仪需要外部电源电压。

问题? 联系我们!

LINETRAXX® VME420
LINETRAXX® VME420
  • 0...300V的交直流欠电压、过电压和频率监视仪
  • 各种监视功能可选< U, > U, < f, > f
  • 可调启动延迟,响应延迟和释放延迟
  • 设备设置的密码保护
  • 预设功能(基本参数的自动设定)

VME420系列电压监视仪被设计用于监视频率、欠电压、过电压和交流和直流系统中两个阈值之间的电压。 电压测量是真实有效值。电流测量值连续显示在液晶屏上。存储触发报警继电器所需的测量值。由于可调的响应时间,可以考虑特定于设备的特性,如特定于设备的启动过程、短时电压波动等。监视仪需要外部电源电压。

问题? 联系我们!

特点

  • Monitoring AC/DC systems for undervoltage, overvoltage and frequency in the voltage range of 0…300 V
  • Various monitoring functions selectable < U, > U, < f, > f
  • Start-up delay, response delay and delay on release
  • Adjustable switching hysteresis
  • r.m.s. value measurement (AC+DC)
  • Digital measured value display via multi-functional LC display
  • Preset function (automatic setting of basic parameters)
  • LEDs: Power On, Alarm 1, Alarm 2
  • Measured value memory for operating value
  • Continuous self monitoring
  • Internal test/reset button
  • Two separate alarm relays (one changeover contact each)
  • N/C or N/O operation and fault memory behaviour selectable
  • Password protection for device setting
  • Sealable transparent cover
  • Two-module enclosure (36 mm)
  • Push-wire terminal (two terminals per connection)
  • RoHS compliant

应用

  • Single-phase voltage and frequency monitoring of machines and electrical installations
  • Earth fault monitoring in medium-voltage systems via voltage transformers
  • Monitoring of battery systems
  • Switching on and switching off at a certain voltage level

LINETRAXX® VME420 变体

型号电源电压US*标称系统电压Un*订货号**
VME420-D-1DC 9,6 V…94 V / AC 16…72 V, 15…460 HzAC/DC 0…300 V / 15…460 HzB73010001
B93010001
VME420-D-2DC 70…300 V / AC 70…300 V, 15…460 HzAC/DC 0…300 V / 15…460 HzB73010002
B93010002

*绝对值
**(B7… = 推线端子 / B9… = 螺丝安装)

可选的附件,用于 LINETRAXX® VME420

TypeArt. No.
Mounting clip for screw mounting (one piece per device)B98060008
Mounting frame XM420B990994

下载 LINETRAXX® VME420

类型命名尺寸语言时间戳D-/B-数量
声明书 UKCA - VMx42x 141.7 KB 2022/12/20 06:00:2220.12.2022 06:00:22
证书 TÜV NORD - isoHV42x, AGH42x, isoHV52x, isoRW42x and VMx420 411.7 KB EN2023/01/12 14:46:3512.01.2023 14:46:35
证书 TÜV NORD - isoHV42x, AGH42x, isoHV52x, isoRW42x und VMx420 431.9 KB DE2023/01/12 14:46:3012.01.2023 14:46:30
CE 合格声明 VMx42x 93.7 KB 2022/11/04 09:31:2004.11.2022 09:31:20
手册 VME420 1.7 MB DE2021/09/22 09:54:4322.09.2021 09:54:43D00026
手册 VME420 1.8 MB EN2021/09/22 09:54:5022.09.2021 09:54:50D00026
手册 VME420 1.5 MB ES2021/09/22 09:54:5722.09.2021 09:54:57D00026
手册 VME420 692.1 KB FR2019/05/13 10:31:5513.05.2019 10:31:55D00026
技术规格书 VME420 365.7 KB DE2021/08/25 07:14:4725.08.2021 07:14:47D00026
技术规格书 VME420 363.8 KB EN2022/08/10 05:51:4410.08.2022 05:51:44D00026
技术规格书 VME420 369.4 KB ES2021/08/25 07:15:2825.08.2021 07:15:28D00026
技术规格书 VME420 516.6 KB ZH2019/05/13 10:31:3313.05.2019 10:31:33D00026
技术规格书 XM420-Schnittstellenoptionen 264.1 KB DE2019/05/13 10:31:3513.05.2019 10:31:35
技术规格书 XM420 interface options 223.5 KB EN2019/05/13 10:31:3613.05.2019 10:31:36D00051
快速启动 VME420 814.5 KB DE2021/09/22 09:55:0722.09.2021 09:55:07D00026
快速启动 VME420 814.5 KB EN2021/09/22 09:55:0722.09.2021 09:55:07D00026
技术信息 Changed variants of relays from goldplated to silver-plated contacts 166.3 KB EN2022/06/27 09:03:0827.06.2022 09:03:08
技术信息 Geänderte Relaisvarianten von vergoldeten Kontakten auf versilberte Kontakte 166.3 KB DE2022/06/27 09:03:0827.06.2022 09:03:08
