    UNIMET® 300ST
    UNIMET® 300ST

    测试系统用于电气床及电气设备,符合事故预防条例。

    智能化与实用化

    • 电气设备、医院和医疗床以及不与患者连接的医用电气设备的安全测试。
    • 4键操作
    • 使用便捷
    • 辅助标准基础分类

      问题? 联系我们!

      特点

      • Easy and safe to operate
      • Automatic and manual test sequence
      • Data input via keyboard or barcode scanner
      • Visual inspection, functional test and electrical tests
      • Memory for 600 data records
      • UNIData 300 – for data exchange and storage
      • Compatible with common application programs z. B. visual FM, MT Data and Fundamed


      Interfaces

      • RS-232 connection
      • PS/2-port for scanner and keyboard
      • Centronic connection for the printer


      Standard Accessories

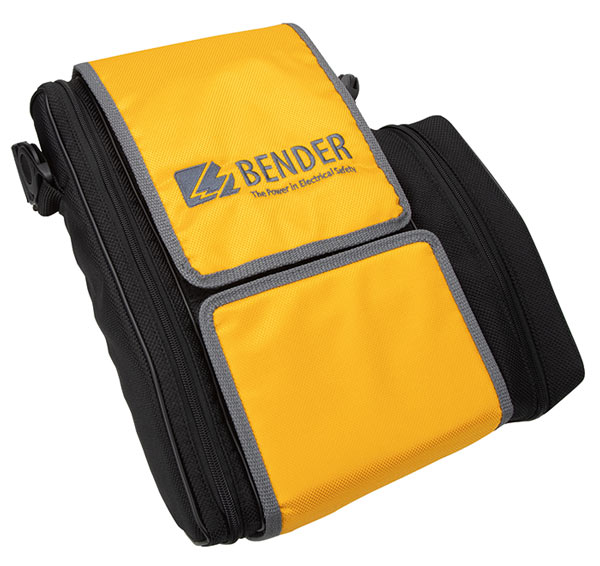

      • Carrier bag of robust design, universal carrying concept
      • Measuring lead with test probe and test terminal
      • Null-modem cable
      • Converter cable USB/RS-232
      • Data management software UNIData 300


      Services

      • Calibration interval 36 months
      • 36-month warranty
      • Software updates for effective application in the future
      • Training courses for operators in Grünberg/Germany

      应用

      Standard-compliant tests in accordance with:

      • IEC 62353:2007-05
      • DIN EN 62353 (VDE 0751-1):2008-08
      • ÖVE/ÖNORM EN 62353:2009-01
      • DIN VDE 0701-0702:2008-06
      • ÖVE E8701-1:03-01


      The following tests can be performed

      • Protective earth conductor resistance
      • Insulation resistance
      • PE current
      • Equipment leakage current
      • Touch current


      Measurement methods of leakage currents

      • Direct measurement method
      • Differential measurement method
      • Equipment leakage current -alternative measurement


      Further measurements and tests

      • Mains voltage
      • Current consumption
      • Visual inspection
      • Functional test

      UNIMET® 300ST 变体

      Country specific device

      DeviceArt.-No.
      UNIMET® 300ST (D/D)B96023000
      UNIMET® 300ST (CH/CH)B96023001

      可选的附件,用于 UNIMET® 300ST

      DeviceArt.-No.
      Barcode scanner-PS/2B96020082
      DS32A Three-phase adaptor for testing medical electrical three-phase devices in operating condition (acc. to DIN EN 62353, DIN VDE 0751-1, DIN VDE 0701-0702)B96020098
      DS32 DCT Three-phase adaptor – passive Three-phase adaptor for testing from devices and cables not in operating conditionB96020100
