POWERSCOUT®

  • 简单设置
  • 长期分析
  • 可视化
  • 自动报告
  • 交叉位置
  • 电气装置和设备的集中测试和监视(IEC 60364-6)
  • 无需安装本地软件

潮湿、老化、污垢、机械损伤或故障所引起的冲击电流、电压和温度影响每一个电气装置。

基于Web软件解决方案的POWERSCOUT® 帮助您在早期发现故障并经济合理的方式消除。POWERSCOUT® 保证了装置和操作的高安全性并且降低了成本。

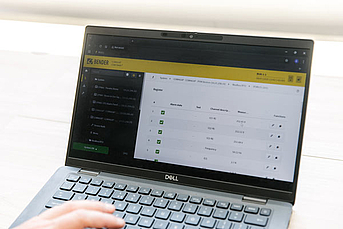

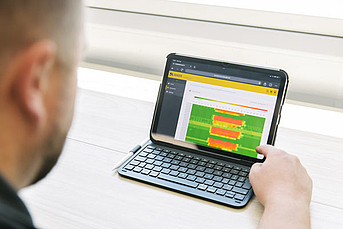

人工数据采集费时费力，容易出错，并且只能提供随机抽样的结果。 POWERSCOUT® 能够让你在任何时候都能洞察到装置的完整数据，因此所有的测量值都能自动并且连续不断的保存。 POWERSCOUT® 结合了测量和监视设备的数据，并所有重要的测量值都生成易于理解的可视化图文。

Go to POWERSCOUT®

问题? 联系我们!

POWERSCOUT®
POWERSCOUT®

We need your consent to load the YouTube Video service!

We use a third party service to embed video content that may collect data about your activity. Please review the details and accept the service to watch this video.

powered by Usercentrics Consent Management Platform
POWERSCOUT®
POWERSCOUT (en)
  • 简单设置
  • 长期分析
  • 可视化
  • 自动报告
  • 交叉位置
  • 电气装置和设备的集中测试和监视(IEC 60364-6)
  • 无需安装本地软件

潮湿、老化、污垢、机械损伤或故障所引起的冲击电流、电压和温度影响每一个电气装置。

基于Web软件解决方案的POWERSCOUT® 帮助您在早期发现故障并经济合理的方式消除。POWERSCOUT® 保证了装置和操作的高安全性并且降低了成本。

人工数据采集费时费力，容易出错，并且只能提供随机抽样的结果。 POWERSCOUT® 能够让你在任何时候都能洞察到装置的完整数据，因此所有的测量值都能自动并且连续不断的保存。 POWERSCOUT® 结合了测量和监视设备的数据，并所有重要的测量值都生成易于理解的可视化图文。

Go to POWERSCOUT®

问题? 联系我们!

特点

  • Resolution of the data as a function of the velocity of the bus system
  • Dashboard management
  • Tree views management
  • Report management
  • Automated sending of reports
  • Integration via CP9xx(-I), COM465IP and COM465DP
  • Integration of third-party devices
  • A web-based application for all types of devices
  • Languages
    – English
    – German
  • User management
  • Supported browsers
    – Chrome
    – Firefox
    – Internet Explorer

应用

  • Residual current
    The commissioning wizard supports you in creating a dashboard that allows evaluating the level of the residual current at a glance. The ratio of residual current and load current is calculated.
  • Stray currents
    The wizard for stray currents indicates the system parts where excessive stray currents exist.
  • Central earthing point
    The central earthing point wizard generates a meaningful visualisation for the user by querying the current at the CEP and the corresponding phase current.
  • Neutral conductor
    The excessive load on the neutral conductor challenges many system operators. The commissioning wizard evaluates the neutral currents and indicates whether they are too high.

POWERSCOUT® 变体

Hosted

TypArt No.
POWERSCOUT ProjectB95061503

If you choose the Hosted model, we will operate POWERSCOUT® for you in a German data centre. We take care of updates and maintenance for you.

下载 POWERSCOUT®

类型命名尺寸语言时间戳D-/B-数量
技术规格书 POWERSCOUT® 989.6 KB DE2021/05/28 07:39:5228.05.2021 07:39:52D00235
技术规格书 POWERSCOUT® 987.4 KB EN2021/05/28 07:39:5828.05.2021 07:39:58D00235
技术规格书 POWERSCOUT® 990.9 KB FR2021/05/28 07:40:0428.05.2021 07:40:04D00235
快速启动 POWERSCOUT® Hosted (from COMTRAXX version 4.00) 918.3 KB EN2020/02/28 07:37:1028.02.2020 07:37:10D00420
快速启动 POWERSCOUT® Hosted (COMTRAXX Version ab 4.00) 918.3 KB DE2020/02/28 07:37:1028.02.2020 07:37:10D00420
快速启动 POWERSCOUT® Hosted (COMTRAXX Version bis 4.00) 751.6 KB DE2020/02/28 07:38:1628.02.2020 07:38:16D00317
快速启动 POWERSCOUT® Hosted (up to COMTRAXX version 4.00) 751.6 KB EN2020/02/28 07:38:1628.02.2020 07:38:16D00317
产品样册 POWERSCOUT® 2.2 MB DE2023/11/10 11:48:2910.11.2023 11:48:29D00235
产品样册 POWERSCOUT® 2.2 MB EN2023/11/13 07:17:5613.11.2023 07:17:56
