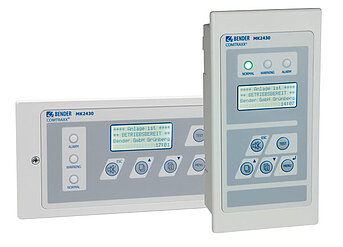

COMTRAXX® MK2430
- 报警指示和测试单元符合IEC 60364-7-710; DIN VDE 0100-710: 2002-11
- 从EDS、RCMS和本德尔医疗系统以及第三方系统的操作状态和报警信息的可视化和声音指示
- 可使用程序测试按钮来测试IT系统监视设备
远程控制和操作报警面板MK2430被设计用于本德尔系统，类似于EDS、RCMS和MEDICS®监视系统的医疗设备。在MEDICS®监视系统中，MK800满足IEC 60364-7-710 and DIN VDE 0100-710:2002-11的要求中关于IT系统监视和转换模块的报警的测试功能。
IT系统监控设备可以使用可编程测试按钮进行测试。
液晶文本显示使这个信息易于理解。MKs和转换和监视模块之间的连接通过总线技术实现。在正常操作过程中，MK2430指示系统运行是否准备就绪。
MK2430-11有12个数字输入允许在MK2430上记录和显示第三方系统的信息，例如医用气体或UPS系统。
- 报警指示和测试单元符合IEC 60364-7-710; DIN VDE 0100-710: 2002-11
- 从EDS、RCMS和本德尔医疗系统以及第三方系统的操作状态和报警信息的可视化和声音指示
- 可使用程序测试按钮来测试IT系统监视设备
远程控制和操作报警面板MK2430被设计用于本德尔系统，类似于EDS、RCMS和MEDICS®监视系统的医疗设备。在MEDICS®监视系统中，MK800满足IEC 60364-7-710 and DIN VDE 0100-710:2002-11的要求中关于IT系统监视和转换模块的报警的测试功能。
IT系统监控设备可以使用可编程测试按钮进行测试。
液晶文本显示使这个信息易于理解。MKs和转换和监视模块之间的连接通过总线技术实现。在正常操作过程中，MK2430指示系统运行是否准备就绪。
MK2430-11有12个数字输入允许在MK2430上记录和显示第三方系统的信息，例如医用气体或UPS系统。
特点
- Display of operating status, warning and alarm messages in accordance with DIN VDE 0100-710, IEC 60364-7-710 and other standards
- Backlit clear LC text display (4 x 20 characters)
- Predefined standard texts in 20 languages
- 200 freely programmable message texts
- Bus technology for easy installation and reduced fire load
- Acoustic alarm with mute function
- Parameter setting via menu (German/English)
- Suitable for flush and surface mounting
- Easy commissioning due to predefined message texts
- 12 digital inputs/1 relay output (MK2430-11 only)
- History memory with real-time clock to store 250 warning and alarm messages
- Easy replacement of MK2418/MK2007
应用
- Visual and audible indication of alarm messages from EDS, RCMS and MEDICS Bender systems.
- Complies with the requirements of DIN VDE 0100-710 regarding messages from changeover modules and IT system as well as test functions for the IT system monitoring
- During normal operation, the MK2430 indicates the readiness for operation of the system.
- Display and visualisation of operating status, warning and alarm messages
- Indication of measured values
- Operation and parameter setting (setting of threshold values for the purpose of measured value monitoring) of BMS devices (EDS, RCMS)
- The clear text display makes information easy to understand.
- Version MK2430-11 features 12 digital inputs allowing messages from other technical equipment to be recorded and displayed on the MK2430, for example from medical gases or special safety power supply sources (UPS).
COMTRAXX® MK2430 变体
| Type | Digital inputs/ relay output | factory- programmed | Enclosure | Enclosure included in the scope of delivery | Art. No. |
|---|---|---|---|---|---|
| MK2430-11 | 12/1 | -- | Flush-mounting | x | B95100001 |
| MK2430C-11 | 12/1 | x | Flush-mounting | x | B95100003C |
| MK2430-12 | -- | -- | Flush-mounting | x | B95100002 |
| MK2430C-12 | -- | x | Flush-mounting | x | B95100004C |
| MK2430H-12 | -- | -- | Flush-mounting, horizontal mounting | -- | B95100024 |
| MK2430A-11 | 12/1 | -- | Surface-mounting | x | B95100005 |
| MK2430CA-11 | 12/1 | x | Surface-mounting | x | B95100007C |
| MK2430C-12 | -- | -- | Surface-mounting | x | B95100006 |
| MK2430CA-11 | -- | x | Surface-mounting | x | B95100008C |
可选的附件，用于 COMTRAXX® MK2430
| Type | Type designation | Art. No. |
|---|---|---|
| TMK-Set V4.xx | software | as Internet download |
| TMK-History V3.xx | software | as Internet download |
| USB driver software for MK2430, MK800 and TM800 | software | as Internet download |
| MK2430-mounting kit, complete | B95101000 | |
| Flush-mounting enclosure | B923710 |
下载 COMTRAXX® MK2430
| 类型 | 命名 | 尺寸 | 语言 | 时间戳 | D-/B-数量 |
|---|---|---|---|---|---|
| CE 合格声明 | MK2430 | 84.7 KB | 2022/08/12 06:17:2512.08.2022 06:17:25 | ||
| 快速启动 | MK2430 | 550.5 KB | DE | 2019/05/13 10:31:5613.05.2019 10:31:56 | D00129 |
| 快速启动 | MK2430 | 550.5 KB | EN | 2019/05/13 10:31:5613.05.2019 10:31:56 | D00129 |
| 手册 | MK2430 | 2.7 MB | DE | 2019/10/01 13:27:4701.10.2019 13:27:47 | D00129 |
| 手册 | MK2430 | 2.6 MB | EN | 2019/10/01 13:29:3701.10.2019 13:29:37 | D00129 |
| 手册 | MK2430 | 736.9 KB | ES | 2019/05/13 10:31:5413.05.2019 10:31:54 | D00129 |
| 手册 | MK2430 | 1.6 MB | FR | 2019/05/13 10:31:5413.05.2019 10:31:54 | D00129 |
| 技术规格书 | MK2430 | 348.9 KB | DE | 2019/10/02 06:18:2702.10.2019 06:18:27 | D00129 |
| 技术规格书 | MK2430 | 345.4 KB | EN | 2019/10/02 06:18:3202.10.2019 06:18:32 | D00129 |
| 技术规格书 | MK2430 | 283.4 KB | ES | 2019/10/02 06:18:3602.10.2019 06:18:36 | D00129 |
| 软件 | TMK-Set (V4.25) | 5.8 MB | 2019/05/13 10:32:0513.05.2019 10:32:05 | ||
| 软件 | TMK-History | 2.6 MB | 2019/05/13 10:32:0513.05.2019 10:32:05 | ||
| 软件 | TMK USB Driver V6.5 Windows XP/2003/Vista(32/64)/7(32/64) | 3.3 MB | 2019/05/13 10:31:5913.05.2019 10:31:59 | ||
| 应用手册 | Elektrische veiligheid in medisch gebruikte ruimten met de IZ427 | 479.1 KB | NL | 2019/05/13 10:31:2813.05.2019 10:31:28 | D00041 |
| 应用手册 | MK2430 in bedrijfstel procedure | 332.1 KB | NL | 2019/05/13 10:31:2813.05.2019 10:31:28 | D00129 |
