LINETRAXX® RCMB42…
- 6mA直流传感器，A型RCD设备
- 交直流敏感型剩余电流测量
- 带外部剩余电流互感器的故障电流监视
- 集成故障记忆 (可调)
交直流敏感型剩余电流监视模块RCMB42… 用于可能会发生直流或者交流故障电流的电动汽车交流充电站的剩余电流监视， 其值永远大于0。
- 6mA直流传感器，A型RCD设备
- 交直流敏感型剩余电流测量
- 带外部剩余电流互感器的故障电流监视
- 集成故障记忆 (可调)
交直流敏感型剩余电流监视模块RCMB42… 用于可能会发生直流或者交流故障电流的电动汽车交流充电站的剩余电流监视， 其值永远大于0。
特点
- DC sensor with additional AC tripping (type B characteristic)
- Response value 2 – AC/DC 30 mA: r.m.s. measurement
- Response value 1: DC 6 mA
- Frequency range, residual current 0…2000 Hz
- Frequency range, load current 45…65 Hz
- Monitoring of the connection to the measuring current transformer
- Shielded residual current transformer to prevent the effects of external disturbances
- Connection by means of push-wire terminals
- Variants: Single and two-channel residual current measurement
应用
- AC charge of electric and hybrid vehicles

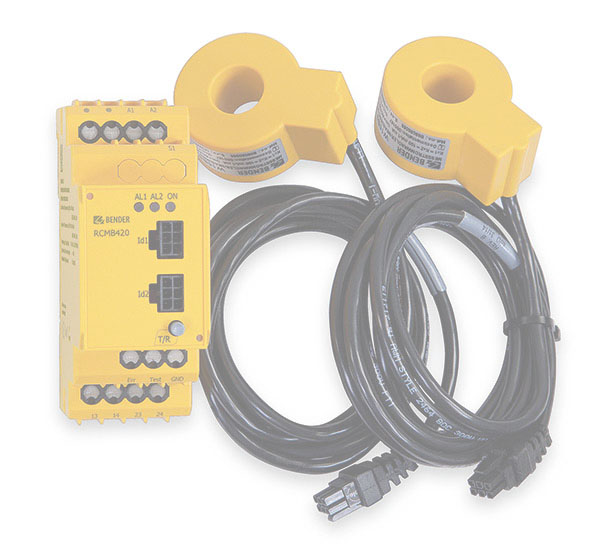

LINETRAXX® RCMB42… 变体
| Type | Measuring range | Frequency range | Number of measuring current transformers (ø 15 mm, 1.5 m Cable) | Channels | Supply voltage US | Art. No. |
|---|---|---|---|---|---|---|
| RCMB420-2 | DC 0…6 mA / AC/DC 0…30 mA (r.m.s.) | 0…2000 Hz | 2 | 2x residual current | AC 110…240 V, 50/60Hz / DC 150…220 V | B74042500 |
| RCMB420-25 | DC 0…6 mA / AC/DC 0…30 mA (r.m.s.) | 0…2000 Hz | 2 | 2x residual current | DC 18…36 V | B74042503 |
| RCMB422-2 | DC 0…6 mA / AC/DC 0…30 mA (r.m.s.) | 0…2000 Hz | 1 | 1x residual current | AC 110…240 V, 50/60Hz / DC 150…220 V | B74042502 |
| RCMB422-25 | DC 0…6 mA / AC/DC 0…30 mA (r.m.s.) | 0…2000 Hz | 1 | 1x residual current | DC 18…36 V | B74042504 |
Delivery incl. measuring current transformers.
Measuring current transformer available with shorter cable on request (minimum order quantity 250 pcs).
可选的附件，用于 LINETRAXX® RCMB42…
| 型号 | 订货号 |
|---|---|
| 螺丝端子安装夹 (每台设备1片) | B98060008 |
| 安装支架 XM420 | B990994 |
下载 LINETRAXX® RCMB42…
| 类型 | 命名 | 尺寸 | 语言 | 时间戳 | D-/B-数量 |
|---|---|---|---|---|---|
| CE 合格声明 | RCMB42x | 83.5 KB | 2022/08/12 06:17:2612.08.2022 06:17:26 | ||
| 手册 | RCMB42x | 1.5 MB | DE | 2021/08/31 10:44:4031.08.2021 10:44:40 | D00167 |
| 手册 | RCMB42x | 1.5 MB | EN | 2021/08/31 10:44:4031.08.2021 10:44:40 | D00167 |
| 技术规格书 | RCMB42x | 1.4 MB | DE | 2022/06/09 10:53:5809.06.2022 10:53:58 | D00167 |
| 技术规格书 | RCMB42x | 1.4 MB | EN | 2022/06/09 10:54:4009.06.2022 10:54:40 | D00167 |
| 技术规格书 | RCMB42x | 599.1 KB | ES | 2022/06/09 10:55:5209.06.2022 10:55:52 | D00167 |
| 快速启动 | RCMB42x | 1,008.3 KB | DE | 2021/08/31 10:07:2531.08.2021 10:07:25 | D00167 |
| 快速启动 | RCMB42x | 1,008.3 KB | EN | 2021/08/31 10:07:2531.08.2021 10:07:25 | D00167 |
