W…AB(P) 系列

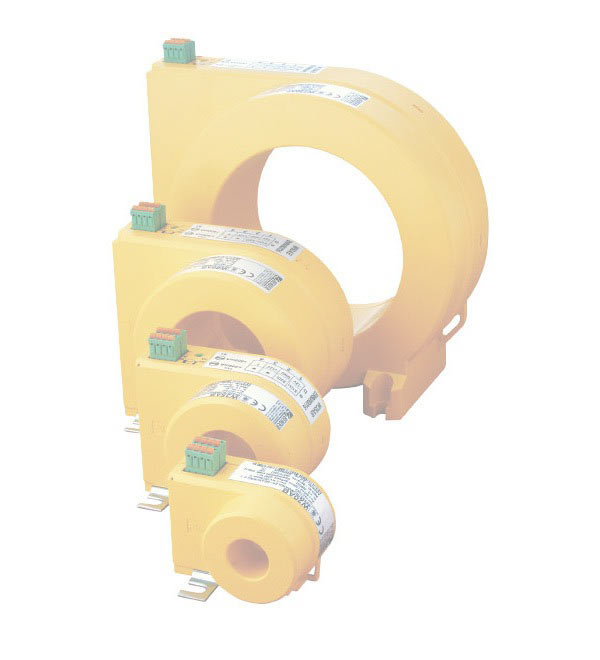

W...-AB系列测量电流互感器可与RCMA420组合使用。RCMS460/423 490系列转换交流和直流电流到评估测量信号。通过一个五芯或六芯电缆连接到相应的设备。电流互感器可以用于交流、直流和三相交流系统。如果测量电流互感器连接到RCMS460/490系统，每6个测量电流互感器需要1台AN420或AN110。
W35ABP和W60ABP系列测量电流互感器集成了屏蔽层。
- 特征
- 应用
- 附件
- 订货信息
- 下载
- W20AB…W60AB for AC/DC sensitive RCMA420 series residual current monitors
- W20AB…W210AB for RCMS460/490 series residual current monitoring systems or for RCMA423 residual current monitors
- W35ABP…W60ABP for RCMS460/490 and RCMA420/423 series residual current monitors. Suitable for systems where short-term system-related load currents occur
可选配件 W…AB(P) 系列
Power supply unit
Connecting cables
Accessories
| Type | Supply voltage US | Art. No. |
|---|---|---|
| AN420-2 | DC 70…300 V/AC 70…276 V, 42…460 Hz | B94053100 |
| AN110-1 | DC 18…72 V/AC 20…60 V, 50…60 Hz | B94053101 |
| AN110-2 | DC 100…353 V/AC 90…264 V, 50…60 Hz | B94053102 |
Connecting cables
| Type | For device | Length/m | Art. No. |
|---|---|---|---|
| WX-100 | RCMA420/423 | 1 | B98080503 |
| WX-250 | RCMA420/423 | 2.5 | B98080504 |
| WX-500 | RCMA420/423 | 5 | B98080505 |
| WX-1000 | RCMA420/423 | 10 | B98080511 |
| WXS-100 | RCMS460/490 | 1 | B98080506 |
| WXS-250 | RCMS460/490 | 2.5 | B 9808 0507 |
| WXS-500 | RCMS460/490 | 5 | B98080508 |
| WXS-1000 | RCMS460/490 | 10 | B98080509 |
Control cable LiYY flexible, 6 x AWG 20 (6 x 0.56 mm²), approved by UL 2464
Accessories
| Type | Art. No. |
|---|---|
| Snap-on mounting for W20AB, W35AB | B98080501 |
| Snap-on mounting for W60AB | B98080502 |
版本 W…AB(P) 系列
| Type | Internal diameter | Mounting DIN rail | Mounting Screw mounting | Art. No. |
|---|---|---|---|---|
| W20AB | ø 20 mm | × | × | B98080008 |
| W35AB | ø 35 mm | × | × | B98080016 |
| W60AB | ø 60 mm | × | × | B98080026 |
| W120AB | ø 120 mm | -- | × | B98080041 |
| W210AB | ø 210 mm | -- | × | B98080040 |
| W35ABP | ø 35 mm | × | × | B98080051 |
| W60ABP | ø 60 mm | × | × | B98080052 |
下载 W…AB(P) 系列
| 分类 | 产品 | 语言 | 日期 | 尺寸 | 下载 |
|---|
