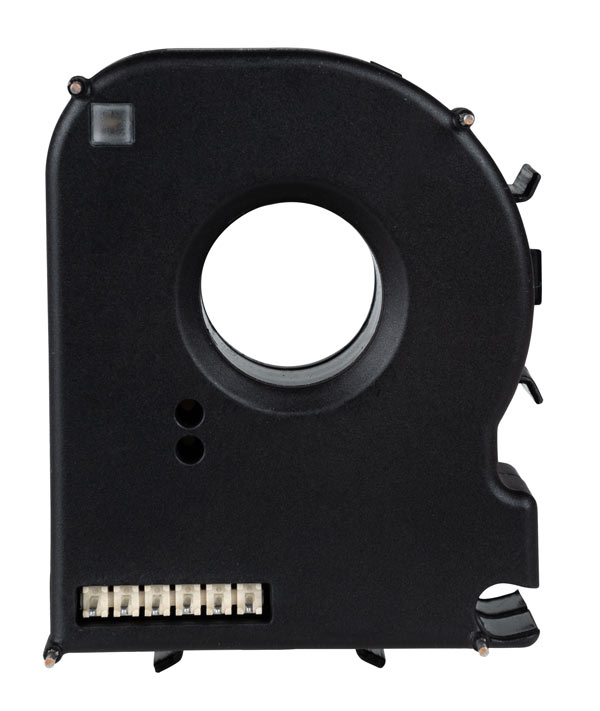

RCMB131-01

RCMB131-01

The AC/DC sensitive residual current monitoring module monitors electrically earthed power supplies up to 300 V and connected loads up to nominal currents of 32 A for leakage and fault currents.

The module is intended for installation in distribution equipment such as PDUs (Power Distribution Units), outlet boxes or multiple socket-outlets and is supplied with DC 12…24 V.

  • 特征
  • 应用
  • 附件
  • 订货信息
  • 下载
  • AC/DC sensitive leakage and fault current monitoring for preventive maintenance
  • Suitable for PCB mounting
  • High resolution for implementing equipment leakage current monitoring
  • Measured value and alarm transmission via Modbus RTU (RS-485)
  • Frequency range DC…2 kHz
  • Compact design for monitoring nominal loads up to In = 32 A
  • Low load current sensitivity due to fully shielded measuring current transformer
  • Continuous monitoring of the connection to the measuring current transformer
  • Integrated test function
  • Supply voltage DC 12…24 V



版本 RCMB131-01


TypeOutput rangeSupply voltage UsArt. No.
RCMB131-010…100 mA (rms)DC 12…24 VB94042131
