LINETRAXX® RCMB35-30-…

LINETRAXX® RCMB35-30-…

  • 与断路器组合,用于MRCD应用
  • 交直流敏感型测量值采集,B型
  • 用于人员保护
  • 由于磁满屏,对负载电流不敏感

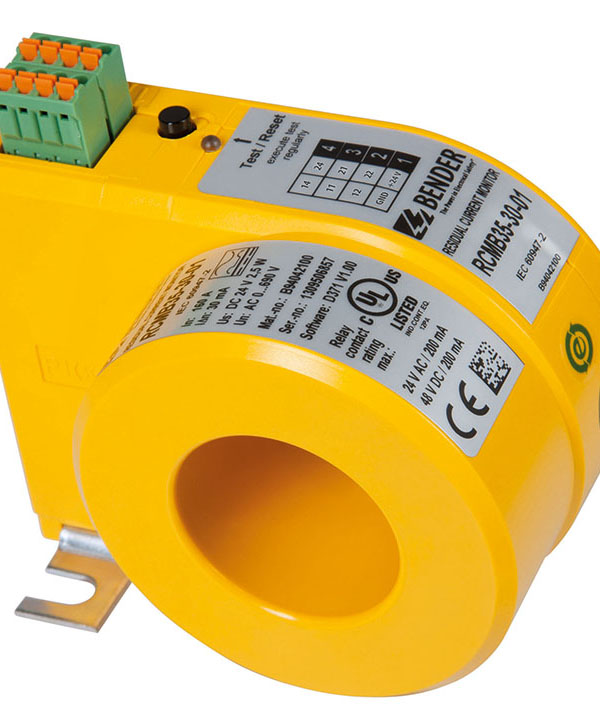

交直流敏感型剩余电流监视模块RCMB35-30-...设计用于接地系统的剩余电流监视(TN和TT系统)。

设备检测直流或交流故障电流。当响应值达到30毫安,开关输出立刻打开。

通过RCMB35-30-01和带隔离功能的开关元件的应用, 这个设备的组合能否满足DIN EN 60947-2 Annex M,MRCD 保护设备的要求. 开关元件的断开时间不能超过20 ms。

  • 特征
  • 应用
  • 附件
  • 订货信息
  • 下载
  • Realisation of a protective device in accordance with DIN EN 60947-2 Annex M in combination with circuit-breakers providing isolating properties
  • Integral switching output for controlling an undervoltage release
  • Combined test and reset button
  • Monitoring of the connection to the measuring current transformer with cyclical test current
  • Insensitive to load currents due to a full magnetic shielding
  • Multicolour LED indicating operation, response value exceeded and fault detected
  • AC/DC sensitive measured value acquisition
  • Response value IΔn ≤ 30 mA
  • Rated frequency range
    RCMB35-30-01: 0…1 kHz
    RCMB35-30-02: 0…10 kHz
  • Supply voltage DC 24 V
  • Measuring current transformer, inside diameter 35 mm



版本 LINETRAXX® RCMB35-30-…


TypeSupply voltage US*Inside diameter/mmArt. No.
RCMB35-30-01DC 20.4…28.8 V35B94042100
RCMB35-30-02DC 20.4…28.8 V35B94042106
